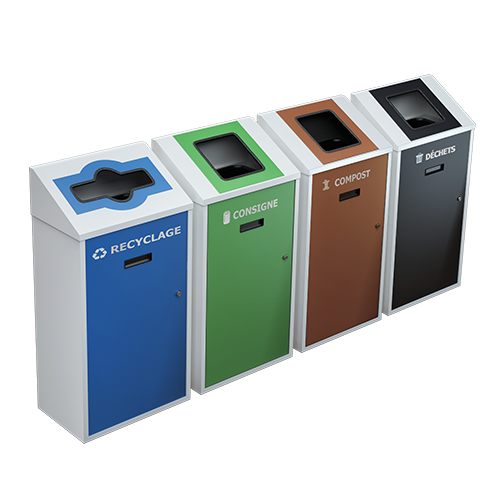

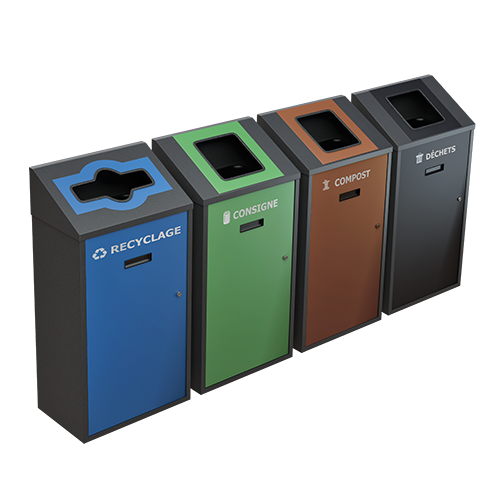

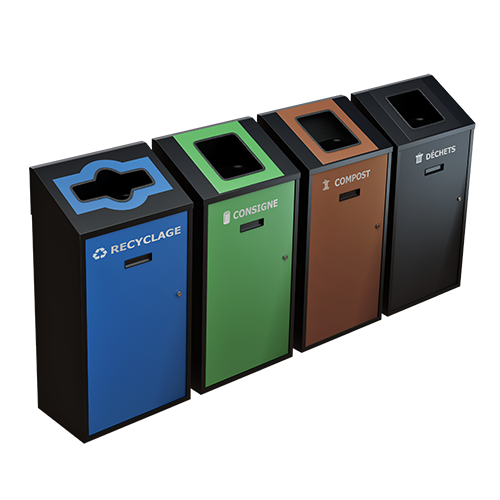

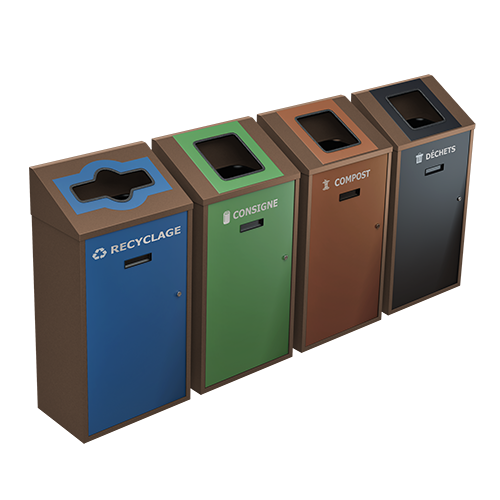

Wall-mounted Lateral Transit Module – 4 lanes of 58 liters

Designed for indoor use, this bin has a capacity of 58 liters per compartment. It is designed and manufactured in Quebec.

MODULAR SYSTEM – The Transit’s modular design allows it to evolve with the ongoing recovery program, by adding or grouping material categories. Each module is completely independent and can be wall-mounted.

Each module is front-unloading, through a front door opening to the left with a recessed handle, but the materials are deposited through openings placed on the top of your choice: slotted, round, square and jumble (combining slotted and round). A rubber border around the opening makes the product more secure. The lid is sloped to prevent the accumulation of debris on top of the islands.

MATERIAL – The construction material is sheet steel with 50% recycled content and is recyclable at the end of its life. The sheet steel is finished with electrostatic paint (baked paint) for long-lasting durability. The bin uses 18-gauge sheet steel, except for the bottom, which is 14-gauge. 58-liter (15 US gal) plastic liners are inserted inside each compartment. 22″ x 36″ bags can be used inside each liner. The liners, which have a lip at the top, are made of plastic with 35% recycled content. Their proper insertion into the compartment is facilitated by two guides attached to the bottom.

DIMENSIONS – The exterior dimensions of one module are 15.98″ (wide) x 13.5″ (deep) x 38.19″ (high).

FRONT DOOR – The opening on the front of each compartment is a 17″x29″ door, secured with a full-height stainless steel piano hinge. The hinge positioning allows the door to open fully.

The doors stay closed with magnets, and an optional lock prevents unauthorized access. A recessed handle makes opening the door easy.

CLASP (optional) – A clasp is available as an option and can be installed on all openings.

DISPLAY (optional) – For display purposes, the use of 3M vinyl stickers with a Teflon finish makes it easy to change the posters as needed. The adhesive used is suitable for metal and electrostatic paint, so it is just difficult enough to remove the stickers (preventing breakage by users), while still allowing their removal in the event that they need to be changed.

This type of sticker and glue have proven effective on Montreal metro bins, where passengers may be tempted to tear off the sticker. Experience shows that removal is too difficult, which discourages passengers, but it is still possible for the team responsible for replacing posters.

Vinyl stickers are coated with Teflon to ensure durability and prevent wear. Vinyl makes the stickers difficult to tear and is easily washable.

• WEIGHT 22.6 kg
• DIMENSIONS 40.6 × 42 × 97 cm
• USE
• COLORS
• LOUNGE VISUALS
• OPENINGS
• COMPARTMENTS
• ABILITY
• NI VALUES
